| Working pressure | 0-0.5 Bar |
| Voltage | 24V DC |
| Holding Power | 6.3 W |
| Holding Current | 265 mA |
| Material | POM+ Stainless steel |
| Fluid temperature | 0-25 ℃ |
| Certification | UL |

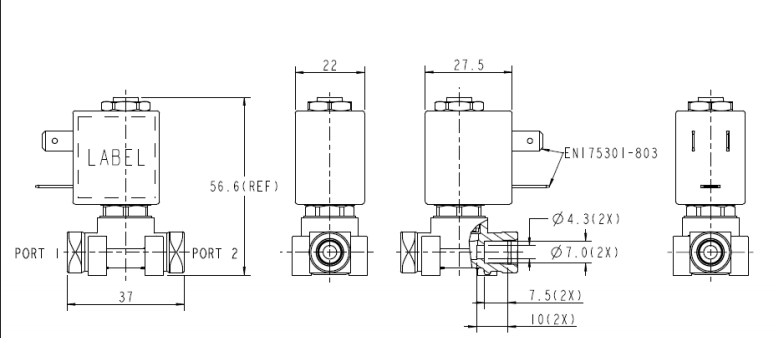

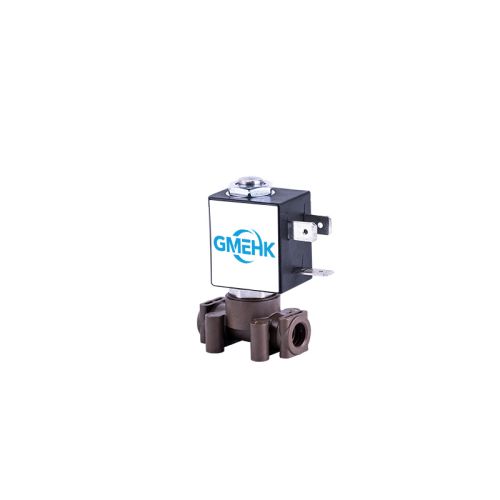

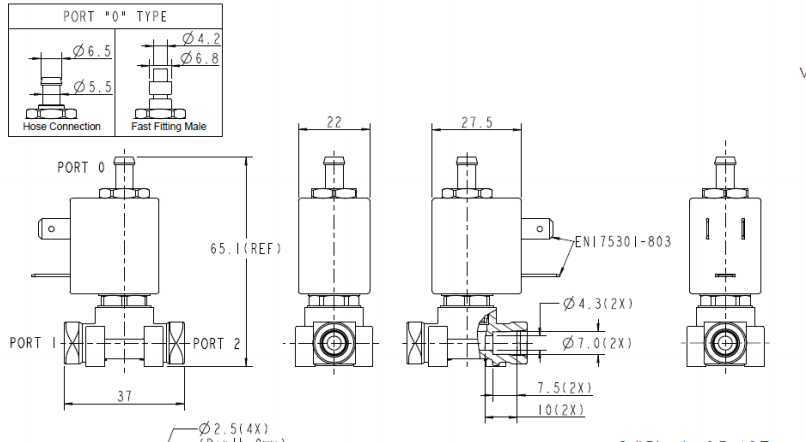

Model 330 /331 PPS 2 ways / 3 ways Solenoid Valve
Voltage 24VDC, 230V 50Hz, 120V 60Hz
Orifice size : 1.2mm, 2.3 ㎜
Duty Circle : 100%
Max. allowable pressure ： 40bar
Ambient Temperature -10 ~ 60°C
Configuration : Normal Close
APPROVALS
FCM NSF, FDA, LFGB, GB
Electrical safety approval VDE, UL, CE
